Motor-type Actuator
Specifications
| Classification | Contents |
|---|---|
| Power | AC220V 60Hz |
| Power Consumption | 3 watt (during operation) |
| Allowed pressure control | 4 bar |
| Open and closing time | 10 seconds |
| Wire | 3P (green, white, black)1m |
| Fixing Prevention | Opening and closing once in 48 hours |

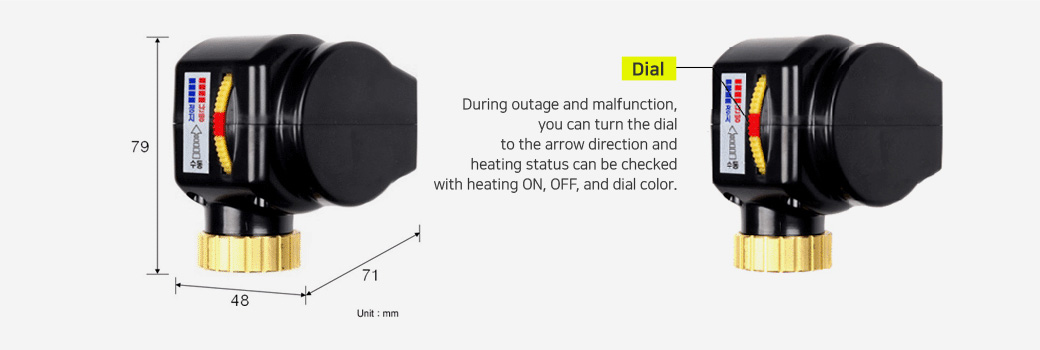

Opening and Closing Indication
- Dial Red : Heating(Valve is opened)
- Dial Green : Stop(Valve is closed)
Characteristic
- A degree of valve’s opening and closing and the flow rate based on the heating surface can be controlled by remote control of heating controller.
- Digital temperature controller can be used.
- With Micom controlling method, protecting function of valve & insert(counterpart) is embedded. (When 48 hours heating is off, automatic one time ON→OFF operating status can be easily recognized (ON↔OFF 10 seconds)
- During outage and malfunction, manual operation is efficient.
