PRODUCT

Valve

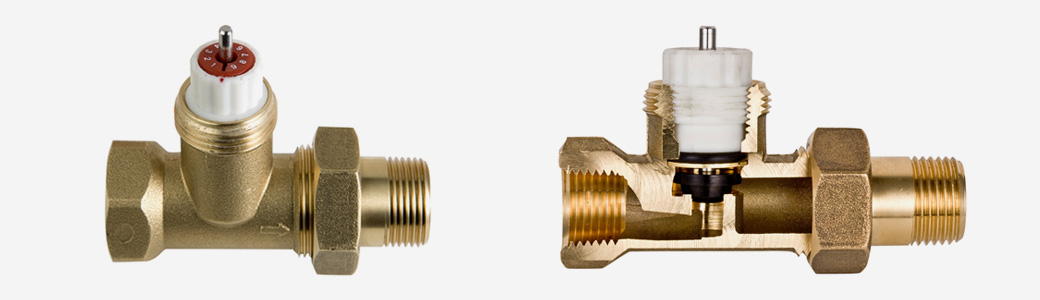

Valve Ø15

Product Specification

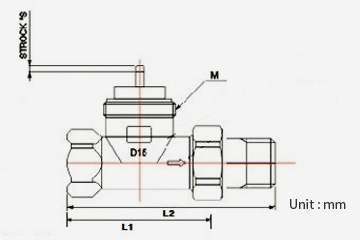

Nominal diameter Stroke (S) Length before connection (L1) Length after connection (L2) Connecting screw of actuator (M)
15A 2.5~3.0 65 94 M30 x 1.5
20A 2.5~3.0 72 103 M30 x 1.5
Characteristic
  • It can be used by combining the manual flow rate control and temperature control valve, and the original temperature control valve + micro flow rate valve are combined as one valve.
  • By attaching Ravi.F, remote control(temperature+timer+flow rate) is possible [Patent registration No. 10-0759223]
